Absorber Material

Concept

Absorber materials consist of a flexible polymer resin loaded with FeSiAl soft magnetic particle. An acrylic pressure-sensitive adhesive allows for easy application.

--EMI--

      Absorber is typically used for applications which may requiring EMI control and signal integrity improvement in the wide frequency range.The absorbed electromagnetic waves is converted into heat to making it as a perfect solution for EMC of electronic equipment.
Frequency range：0.1~8GHZ

 --NFC--

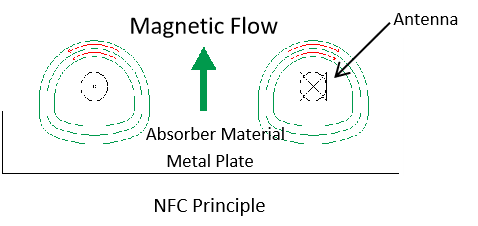

This material can effectively solves the interference effect of NFC antenna, RFID tag and IC card in the metal surrounding situation.The thinner property is suitable for tight spaces in application.
Frequency range：125KHz~13.56MHz~1GHz

--Wireless charging--

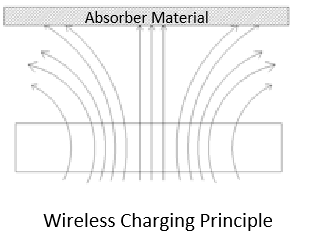

The material is integrated with the wireless charger coil to allow the battery signal coming closely surround the coil and increase the magnetic flux density. This material can avoid a large amount of attenuation of electromagnetic signals on air or metal objects, allowing the wireless charger efficiency to return to theoretical values.
Frequency range：100~300KHz~6.78MHz
